ATS080BSM-1
Manufacturer:
CTS Corporation
Mfr.Part #:
ATS080BSM-1
Datasheet:
Description:

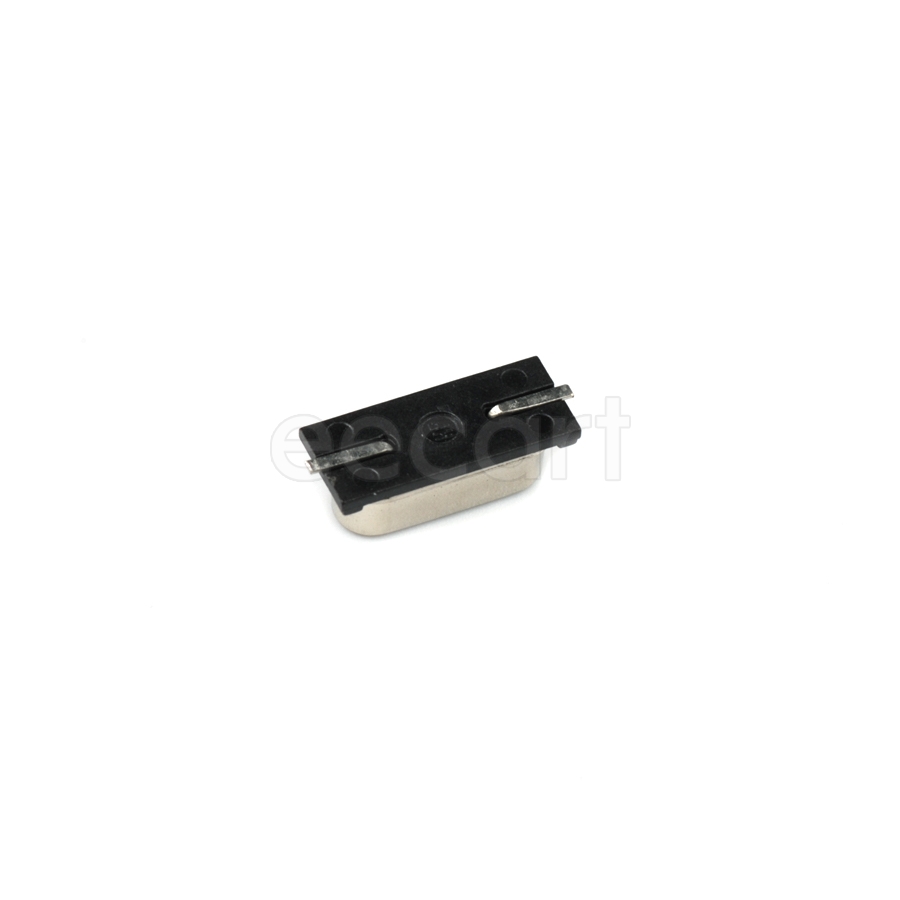

Crystals HC-49/US-SM SMD/SMT 8 MHz 18 pF
| Parameter | Value |
|---|---|
| Tolerance | 0.003 % |
| ESR (Equivalent Series Resistance) | 60 Ω |
| Length | 11.1 mm |
| Width | 4.826 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 2 |
| Height | 4.2926 mm |
| Depth | 4.83 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Copper, Silver, Tin |
| Frequency | 8 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 0.003 % |
| Load Capacitance | 18 pF |
| Series Resistance | 60 Ω |
| Operating Mode | Fundamental |
| Packaging | Reel |
| Height - Seated (Max) | 4.3 mm |
| Drive Level | 100 µW |
Stock: 365
Distributors
pcbx
pcbxUnit Price$0.31889
Ext.Price$0.31889
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.31889 | $0.31889 |
| 10 | $0.27529 | $2.75290 |
| 25 | $0.26394 | $6.59850 |
| 50 | $0.25306 | $12.65300 |
| 100 | $0.24366 | $24.36600 |
| 300 | $0.23451 | $70.35300 |
| 500 | $0.22570 | $112.85000 |
| 1000 | $0.22484 | $224.84000 |
| 3000 | $0.21209 | $636.27000 |
| 5000 | $0.20006 | $1000.30000 |
| 10000 | $0.16500 | $1650.00000 |
